Axis3D MON - Monitoring

Field solution for trigonometric deformation measurements

deformation measurements Short measuring times: Automatic target positioning using pre-defined target heights and reflector constants.

Flexibility: Switch quickly between automatic and manual measurement. Freely choose observation order of reference, orientation, and monitoring points.

Intuitive user interface: Workflow optimized for fieldwork – developed by surveyors for surveyors.

No additional hardware: On-board software for Leica Geosystemstotal stations TPS1200, TM/TS30, Viva and Nova total station.



No additional hardware


Setup and Orientation


Deformation Measurement

Stationing The station position is calculated using standard Leica functions. This allows Axis3D MON to automatically identify point IDs and measure targets.
Setup and Orientation Measure to reference points for postprocessing of position, height, and orientation. Assigning point IDs and positioning to targets can be automated.
Deformation Measurement Change quickly between automatic and manual measurements. Take sideshots or interrupt deformation measurements for manual profile checks or other observations at any time without exiting the program.

Functionality

Applications

General
  • Measurement data stored in ASCII files in Leica GSI8 or GSI16 format, and the the on-board database (Viva and Nova)
  • Point coding consistent with other Axis3D products
  • Making use of Leica Viva Imaging functionality (coming soon)
  • Optional: logging of all activities on the total station
  • Program continues after power fail
Reference Points
  • Unlimited number of reference points
  • One- or two-face measurements
  • Automatic detection of point IDs for manual measurements
  • Automatic positioning after entering point ID
  • Automated target recognition (ATR)
  • measurement using pre-defined target
  • heights and reflector constants
  • All target points stored for repeat measurements
Orientation Points
  • Unlimited number of target points
  • One- or two-face measurements
  • Automatic detection of point IDs for manual measurements
  • Automatic positioning after entering point ID
  • ATR measurement using pre-defined target
  • heights and reflector constants
  • All target points stored for repeat measurements
Deformation Points
  • Unlimited number of target points
  • One- or two-face measurements
  • Automatic detection of point IDs for manual measurements
  • Automatic positioning after entering point ID
  • Automatic targeting of all points in a chainage or point ID range
  • ATR measurement using pre-defined target
  • heights and reflector constants
  • Automatic orientation checks

Other Points

  • Manual measurement to other points, e.g. profile checks or points at the tunnel face
  • One- or two-face measurements

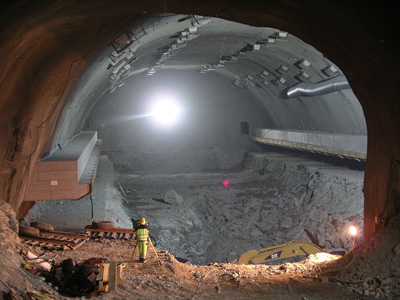

Geotechnical measurements Tunneling
Geotechnical measurements


Periodic observations Existing Structures
Periodic observations

Geomonitoring Slope Movements
Geomonitoring

System Information

Hardware
  • Leica TPS1200 total station
  • Leica TM/TS30 total station
  • Leica Geosystems Viva total station
  • Leica Geosystems Nova total station
Software
  • Axis3D MON On-Board Software for Leica TPS1200, TM/TS30, Viva and Nova total stations
